SONY STRDH190 2 Channel Stereo Receiver with Phono Inputs and Bluetooth is built for one job and does it properly: turning a turntable and a phone into a real stereo system. A dedicated phono stage takes a moving-magnet cartridge straight in, with RIAA equalisation handled internally, so no separate preamp sits between your records and your speakers. Bluetooth covers everything else, and Bluetooth Standby wakes the receiver from your paired device. A discrete power amplifier delivers 90 watts per channel across the full audio band, four analog inputs handle your wired sources, and the A+B outputs drive two pairs of speakers. All of it fits in a chassis just 5¼ inches tall.
Specifications
A Real Phono Stage, Built In
Plug the turntable straight in. A dedicated phono input handles moving-magnet cartridges with proper pre-amplification and RIAA equalisation done inside the receiver, so there is no separate phono box to buy, power and find shelf space for. It is the difference between a record collection you can actually play and one waiting on another purchase.
Bluetooth That Turns the Receiver On For You
Stream from a phone, tablet or laptop straight to your main speakers over Bluetooth 4.2, with AAC as well as SBC for better quality from Apple devices. Bluetooth Standby is the part you notice daily: hit play on a paired device and the receiver powers itself up. Up to ten devices stay paired, so everyone in the house keeps their connection.
90 Watts Per Channel, Across the Whole Band
A discrete power amplifier delivers 90 watts per channel into 8 ohms measured across the full 20 Hz to 20 kHz range at 0.09% distortion, and 100 watts per channel measured at 1 kHz. That first number is the honest one for a US buyer, and it is enough headroom to drive bookshelf speakers and compact floorstanders without the sound hardening as you turn it up.

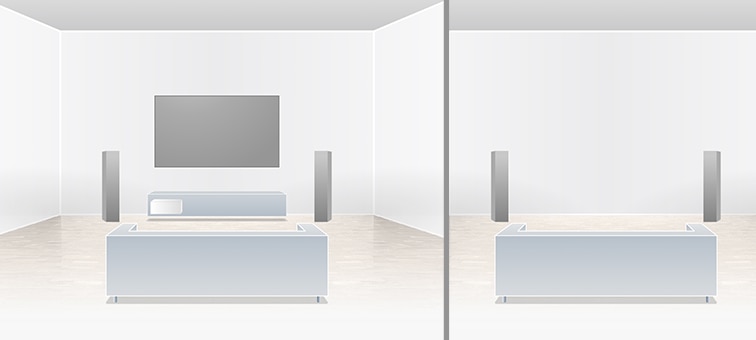

Drive Two Pairs of Speakers
The A+B function runs two pairs of speakers, separately or together, from a front-panel selector. Fill a large room with all four, send the B pair to a second room, or wire a set of outdoor speakers off the same amplifier. When running A and B simultaneously, use speakers with a nominal impedance of 12 to 16 ohms.
Four Analog Inputs and an Output
Beyond the phono stage, four stereo RCA inputs take a CD player, a media streamer, a TV or anything else running at line level, and a stereo output feeds a recorder or a second zone. Inputs run at 500 mV into 50 kilohms with a 96 dB signal-to-noise ratio, and each one can be renamed on the display so the front panel reads what is actually plugged in.
FM Tuner With 30 Presets
Free radio, still the easiest source in the house. The built-in FM tuner scans automatically, displays station names, and holds 30 presets with three of them mapped to dedicated remote buttons. A wire antenna is supplied in the box, and the 75-ohm terminal takes a roof or attic aerial if you want stronger reception.
Pure Direct
One button strips the signal path back to essentials. Pure Direct routes audio around the tone and balance circuitry and shuts off the display panel to suppress the noise it generates, leaving the shortest, quietest route from source to speaker. Bass and treble controls are bypassed while it is active, which is exactly the point.
Phono Volume Offset
Moving-magnet cartridges vary in output, and a quiet one leaves vinyl sounding weak against everything else you play. Phono Volume Offset lifts the phono input by up to 6 dB in 1 dB steps, so records sit at the same level as Bluetooth and your line sources. Set it once and stop reaching for the volume knob every time you drop the needle.
Headphones, Aux In and a Remote
A full-size quarter-inch gold-plated headphone jack sits on the front panel, so proper headphones plug in without an adapter. Beside it, a 3.5 mm auxiliary input takes a phone or portable player on the fly. The supplied remote handles source selection, volume, tuning, tone and sleep, with tactile dots on the key buttons for use in the dark.
A Chassis Built to Stay Still
Speakers push air, and air pushes back on everything nearby. A reinforced frame-and-beam chassis stiffens the receiver against that pressure, and rigid mounting holds the heat sink firmly, keeping that vibration out of the circuitry. Less resonance means less smearing of fine detail, which is where the money in a design like this actually goes.
A Power Supply That Keeps Out of the Signal
Clean sound starts before the amplifier stage. A large-capacity power transformer supplies stable current under load, and the phono amplifier is deliberately positioned away from it so the transformer's magnetic field stays out of the most sensitive signal in the box. Internal layout is invisible on a spec sheet and audible on a quiet passage.
Wide Enough for High-Resolution Sources
The analog signal path runs from 10 Hz to 100 kHz within +0.5 and −2 dB, comfortably past the range of CD and into what high-resolution recordings carry. Feed it a well-recorded record or a hi-res stream and the receiver passes the subtle material intact rather than rounding it off on the way to the speakers.
Fits the Cabinet You Already Own
At 5¼ inches tall and 11¼ inches deep, this receiver slides into the shelf a taller component will not, which matters when the cabinet was bought for the room rather than for the gear. The finish is plain black with a clean front panel, built to sit quietly among the rest of the system instead of announcing itself.
Sleep Timer and Auto Standby
Fall asleep to a record and the sleep timer shuts things down at 30, 60, 90 or 120 minutes. Leave the house with it running and Auto Standby steps in after roughly 20 minutes of no signal and no input, dropping the receiver to 0.3 watts. Bluetooth Standby holds at 1 watt, which is the price of having it wake on command.
- Pure Direct: Yes
- Speaker Selector: A/B/A+B/OFF
- Speaker Terminal Type: Push
- Analog Audio In: 4
- Analog Stereo Mini Jack: 1
- Phono (MM): 1
- Analog Audio Out: 1
- Headphone Out: Yes (Gold)
- Bluetooth Receiver: Yes
- Front: 100 W + 100 W (8ohms, 1 KHZ, THD 1%)
- Number of amp. channels: 2ch (Supporting SpeakerA+B)
- Speaker Impedance: 6-16ohms
- Front A: Yes
- Front B: Yes
- Front (Bass/Treble): Yes
- Auto Tuning: Yes
- FM/AM: Yes (FM only)
- Preset Channel (FM/AM): TTL30 (30/-)
- Station Name: Yes
- English(US) or English(GB): Yes
- French or French(CA): Yes
- Spanish or Spanish(LA): Yes
- English(US) or English(GB): Yes
- French or French(CA): Yes
- Spanish or Spanish(LA): Yes
- Sleep Timer: Yes (up to 2 hours)
- Auto Standby: Yes
- Pin Jack: Nickel
- Power Consumption: 200W
- Power Consumption(Power Stand By): 0.3W Bluetooth Standby: 1 W
- Power Requirement: AC 120V 60Hz
- Remote Commander: RMT-AA400U
- Receiver Dimension (WxHxD inches): 17 x 5 1/4 x 11 1/4 in (430 x 133 x 284 mm)
- Receiver Weight (pound): 14 lb 13 oz (6.7 kg)
- Remote (RMT-AA400U)
- Batteries
- FM antenna
